LaTeX Style Guide for Operations Research

latexnotesoperations research

A LaTeX style guide tailored to Operations Research papers.

This is a LaTeX style guide tailored to Operations Research papers. It includes:

  • A plain article template you can use for drafts and preprints.
  • A package set and ordering rules that work well for OR.
  • Notation + macro discipline (models, constraints, index sets, dual variables).
  • Math typography and font styles (e.g., boldface vectors/matrices) in OR practice.
  • “Easy to ignore” English and typographic micro‑rules: punctuation, dashes, capitalization, spacing, etc.
Venue note: if a journal/conference provides a .cls/author kit, use it. Keep the notation/macros from this guide; swap the class.

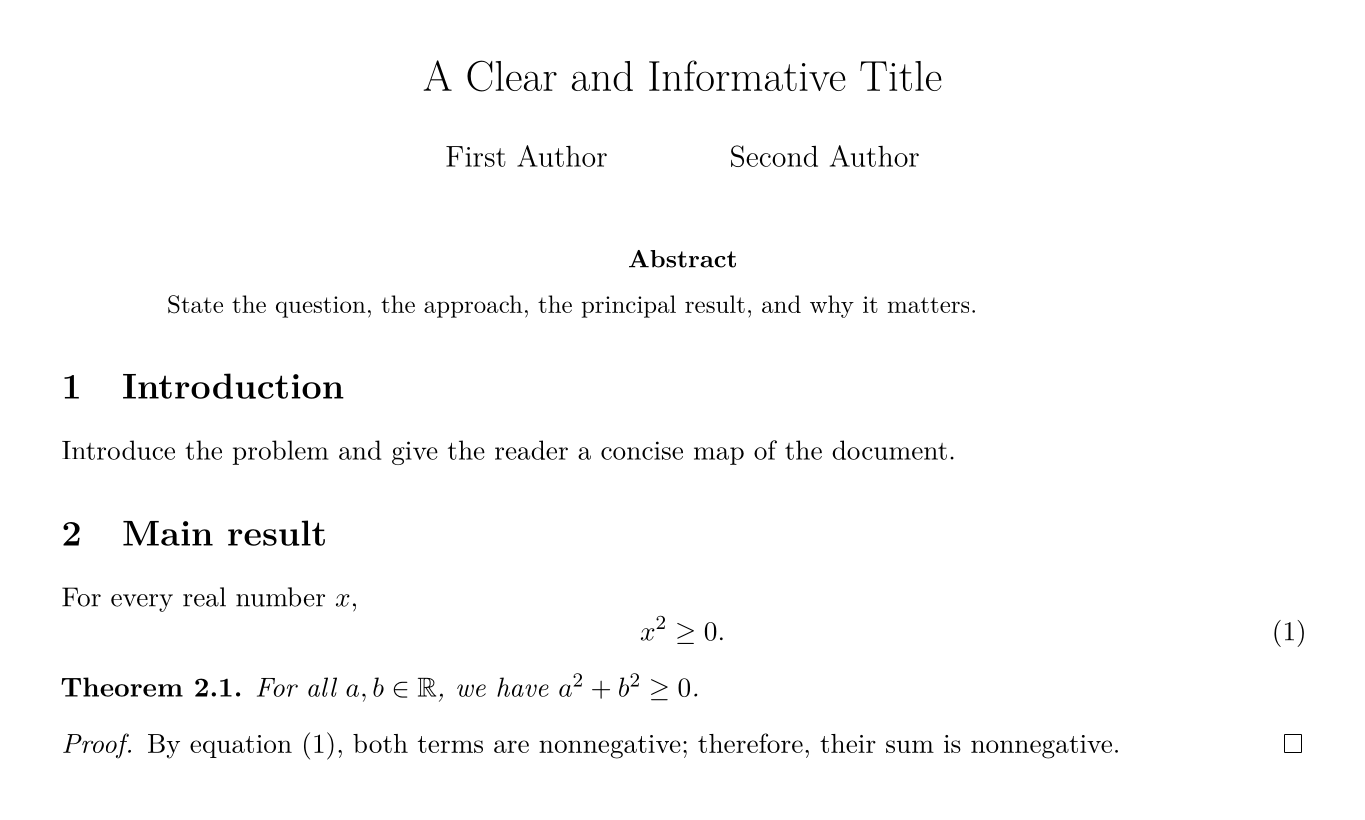

Plain OR paper template

Paste into main.tex. It is a clean base for OR drafts, with OR-friendly theorem + algorithm support.

\documentclass[11pt]{article}

% --------------------
% Language
% --------------------
\usepackage[T1]{fontenc}
\usepackage[utf8]{inputenc}
\usepackage{lmodern}
\usepackage[english]{babel}

% --------------------
% Layout + typography
% --------------------
\usepackage[margin=1in]{geometry}
\usepackage{microtype}
\usepackage{csquotes}
\usepackage{xcolor}

% --------------------
% Math
% --------------------
\usepackage{amsmath, amssymb, amsthm}
\usepackage{mathtools}
\usepackage{bm}
\usepackage{siunitx}

% --------------------
% Algorithms (choose ONE stack)
% --------------------
\usepackage{algorithm}
\usepackage{algpseudocode}
% Alternative (not compatible with algorithmicx syntax):
% \usepackage[ruled,vlined]{algorithm2e}

% --------------------
% Figures and tables
% --------------------
\usepackage{graphicx}
\usepackage{subcaption}
\usepackage{booktabs}

% --------------------
% Lists
% --------------------
\usepackage{enumitem}
\setlist[itemize]{topsep=4pt,itemsep=2pt}
\setlist[enumerate]{topsep=4pt,itemsep=2pt}

% --------------------
% Hyperlinks: load late
% --------------------
\usepackage[colorlinks=true,allcolors=blue]{hyperref}
\usepackage[nameinlink,noabbrev]{cleveref}

% --------------------
% Bibliography (draft-friendly)
% --------------------
\usepackage[
  backend=biber,
  style=authoryear,   % common in OR journals
  sorting=nyt,
  giveninits=true,
  maxbibnames=99,
  doi=true,
  url=true,
  isbn=false
]{biblatex}
\addbibresource{references.bib}

% --------------------
% OR theorem environments
% --------------------
\theoremstyle{plain}
\newtheorem{theorem}{Theorem}
\newtheorem{lemma}{Lemma}
\newtheorem{proposition}{Proposition}
\newtheorem{corollary}{Corollary}

\theoremstyle{definition}
\newtheorem{definition}{Definition}
\newtheorem{assumption}{Assumption}

\theoremstyle{remark}
\newtheorem{remark}{Remark}

% --------------------
% Your notation
% --------------------
\input{macros.tex}

\title{Your OR Paper Title}
\author{First Author \and Second Author}
\date{} % often left empty in submissions

\begin{document}
\maketitle

\begin{abstract}
State the problem, your contribution (model/algorithm/insight), and the key results (theoretical + computational).
\end{abstract}

\section{Introduction}
Introduce the decision problem and motivate relevance. Summarize contributions crisply.

\section{Model}
An example model appears in \cref{prob:base}.

\begin{subequations}\label{prob:base}
\begin{align}
\min_{\vect{x}} \quad & \vect{c}^{\mathsf{T}}\vect{x} \label{prob:base:obj}\\
\st \quad
& \mat{A}\vect{x} \ge \vect{b}, \label{prob:base:constr1}\\
& \vect{x} \in \Reals_+^n. \label{prob:base:dom}
\end{align}
\end{subequations}

\section{Algorithm}
\begin{algorithm}[t]
\caption{Generic decomposition framework}
\label{alg:decomp}
\begin{algorithmic}[1]
\State Initialize master problem.
\While{termination criterion not met}
  \State Solve master problem; obtain candidate solution.
  \State Solve subproblem; generate cut if needed.
\EndWhile
\State \Return best feasible solution found.
\end{algorithmic}
\end{algorithm}

\section{Theory}
\begin{theorem}\label{thm:convergence}
Under \cref{ass:regularity}, Algorithm~\ref{alg:decomp} terminates in finitely many iterations.
\end{theorem}

\begin{proof}
Sketch the proof structure; avoid long narrative if a standard argument applies.
\end{proof}

\section{Computational experiments}
Describe instances, parameter settings, hardware, solver versions, and evaluation protocol.

\printbibliography

\end{document}

Packages: OR baseline and options

  • Math and structure

- amsmath, amssymb, amsthm: models, proofs, theorem environments. - mathtools: improves amsmath (paired delimiters, etc.). - bm: reliable bold math (Greek, symbols). - siunitx: units/numbers (important for computational tables, time units).

  • Algorithms

- algorithm + algpseudocode (algorithmicx): flexible pseudocode. - (Alternative) algorithm2e: produces good-looking algorithms but has its own syntax. - Pick one to avoid conflicts.

  • Figures/tables

- graphicx, subcaption, booktabs.

  • Refs

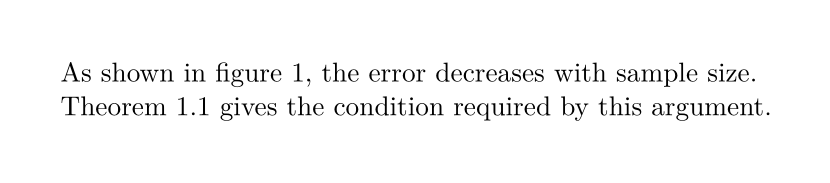

- hyperref (late), then cleveref for “Eq./Alg./Thm.” automation.

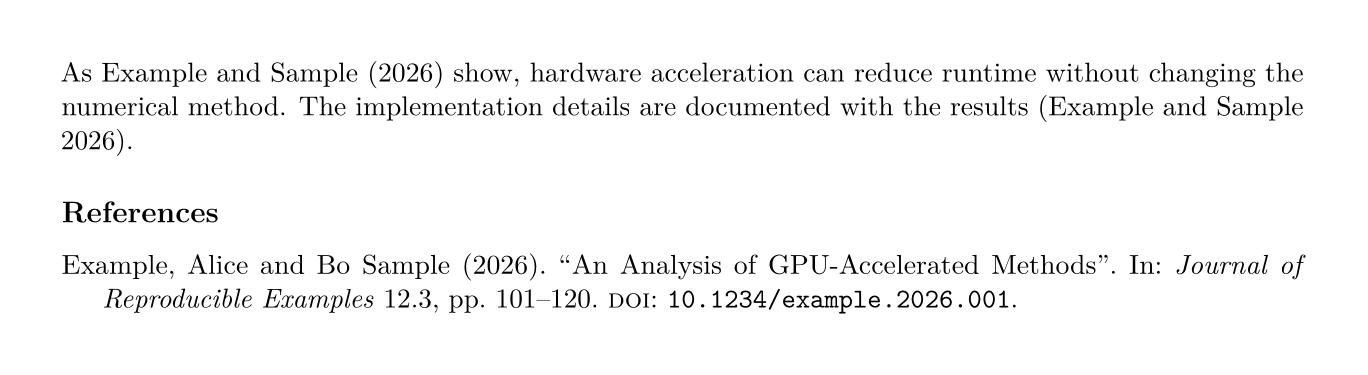

  • Bibliography

- biblatex + biber in drafts; switch to venue style later if needed.

OR-useful optional packages

  • Optimization formulation helpers

- optidef: nice “minimize / subject to” blocks (convenient, but check compatibility with venue). - If you keep the formulation in plain align, you’ll never be blocked by venue constraints.

  • Diagrams

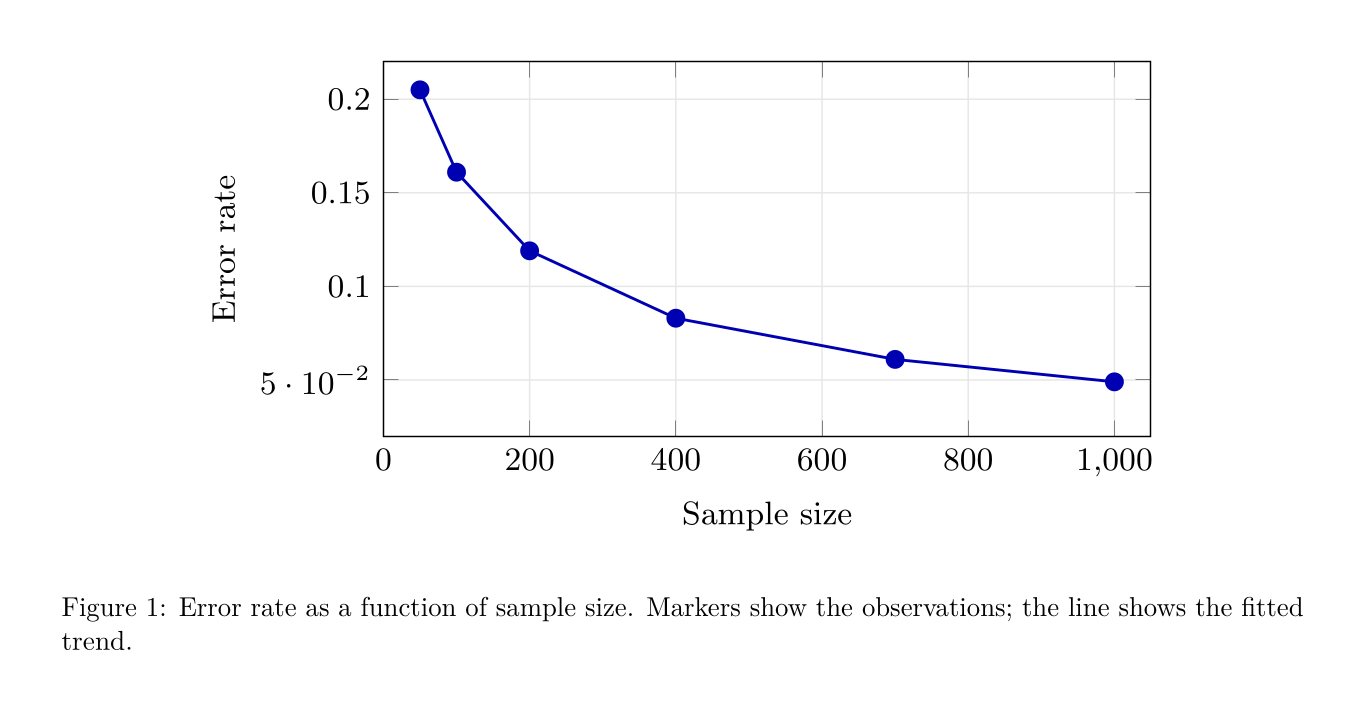

- tikz / pgfplots: great for network flow diagrams or stylized plots, but can slow compilation. - Often best practice is: generate plots with Python/R/Matlab → include as PDF.

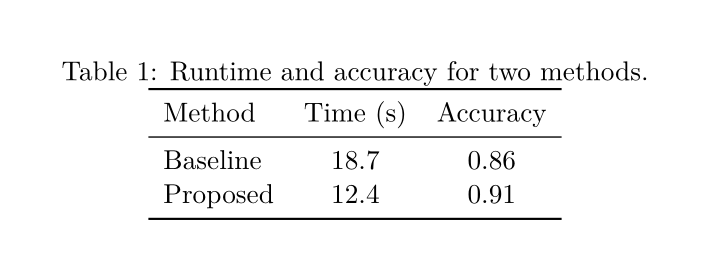

  • Tables

- threeparttable (notes under tables). - tabularx (automatic width). - multirow, makecell for complex headers (use sparingly).

Package ordering rules

  • Fonts early, then math, then floats/tables, then hyperref, then cleveref.
  • \input{macros.tex} after packages.
  • Avoid “mega-packages” that change defaults globally unless you must.

Notation and macro policy for OR

OR papers often fail on one of two extremes:

  • No macros → inconsistent notation and formatting drift.
  • Too many macros → unreadable source and brittle compilation.

Aim for a small, semantic macro set.

Typical OR notation categories

A common, readable split:

  • Sets: calligraphic, e.g., $\mathcal{I}, \mathcal{J}, \mathcal{A}$
  • Indices: roman letters, e.g., $i \in \mathcal{I}$, $j \in \mathcal{J}$
  • Decision variables: italic scalars ($x_{ij}$), bold vectors/matrices ($\bm{x}$, $\bm{A}$)
  • Parameters: italic ($c_{ij}$), sometimes roman for fixed constants (taste/venue)
  • Dual variables / multipliers: Greek letters (e.g., $\pi, \lambda$)
  • Random variables: uppercase ($D$) or decorated (e.g., $\tilde{D}$); choose one convention

Macro naming conventions (pragmatic)

  • \setI, \setJ for index sets (or \mathcal{I} inline if not repeated often).
  • \vect{} and \mat{} for vectors/matrices.
  • Operators: \argmin, \argmax, \st, \E, \Prob.
  • Indicator function: \ind{...} or \1{...}.

Do not redefine core symbols (\le, \epsilon, etc.) unless a strong reason exists.

Label namespaces

Suggested label prefixes:

  • sec:... — section
  • prob:... — models/problems
  • eq:... — single equations
  • fig:... — figures
  • alg:... — algorithms
  • thm:..., lem:..., prop:..., ass:...

Example:

  • \label{prob:facility} for a facility location model
  • \label{prob:facility:cap} for its capacity constraint

Optimization model formatting

Preferred structure: subequations + align

This gives you:

  • A single “model number” (e.g., (1))
  • Constraint letters (e.g., (1a), (1b), …)
  • Individual constraint labels for precise referencing

Example: MILP model.

\begin{subequations}\label{prob:ufl}
\begin{align}
\min_{x,y} \quad
& \sum_{i\in\setI}\sum_{j\in\setJ} c_{ij} x_{ij} + \sum_{j\in\setJ} f_j y_j \label{prob:ufl:obj}\\
\st \quad
& \sum_{j\in\setJ} x_{ij} = 1, && \forall i\in\setI, \label{prob:ufl:assign}\\
& x_{ij} \le y_j, && \forall i\in\setI,\, \forall j\in\setJ, \label{prob:ufl:open}\\
& x_{ij} \ge 0, && \forall i\in\setI,\, \forall j\in\setJ, \label{prob:ufl:xdom}\\
& y_j \in \{0,1\}, && \forall j\in\setJ. \label{prob:ufl:ydom}
\end{align}
\end{subequations}

Then reference:

  • “Model \cref{prob:ufl}”
  • “Constraint \cref{prob:ufl:open}”
  • “Constraints \cref{prob:ufl:assign,prob:ufl:open}”

“s.t.” and quantifiers

  • Write s.t. as text: \st macro (upright roman), not italic math letters.
  • In OR, quantifiers are often best as side conditions:

- && \forall i\in\setI is clear and compact.

  • Avoid writing constraints with heavy logic symbols (\forall, \exists) inline unless needed.

Punctuation

Treat the whole optimization block as part of a sentence. A common convention:

  • Put no period after the last constraint if followed by text immediately, or
  • Put a period after the final line if it ends the sentence.

Be consistent.

Naming models: (LP), (MIP), (SP), …

If you want named models like “(MIP)”, use \tag{MIP}:

\begin{align}
\min_x \quad & c^\top x \\
\st \quad & Ax \ge b, \tag{MIP}\label{prob:mip}
\end{align}

Note: \tag is manual; use it sparingly and only if your venue supports it.

Dual variables and Lagrangian notation

Best practice in OR manuscripts:

  • Use explicit dual variable names with constraints (when deriving duals/KKT).
  • Keep a consistent mapping:

- primal constraints → dual multipliers (e.g., $\pi_i$) - variable bounds → multipliers (e.g., $\mu_j \ge 0$)

If you annotate constraints with duals, do it cleanly:

& \sum_{j\in\setJ} x_{ij} = 1, && \forall i\in\setI, \quad (\pi_i) \\

Be careful: annotation is helpful in derivations, but can clutter final models.

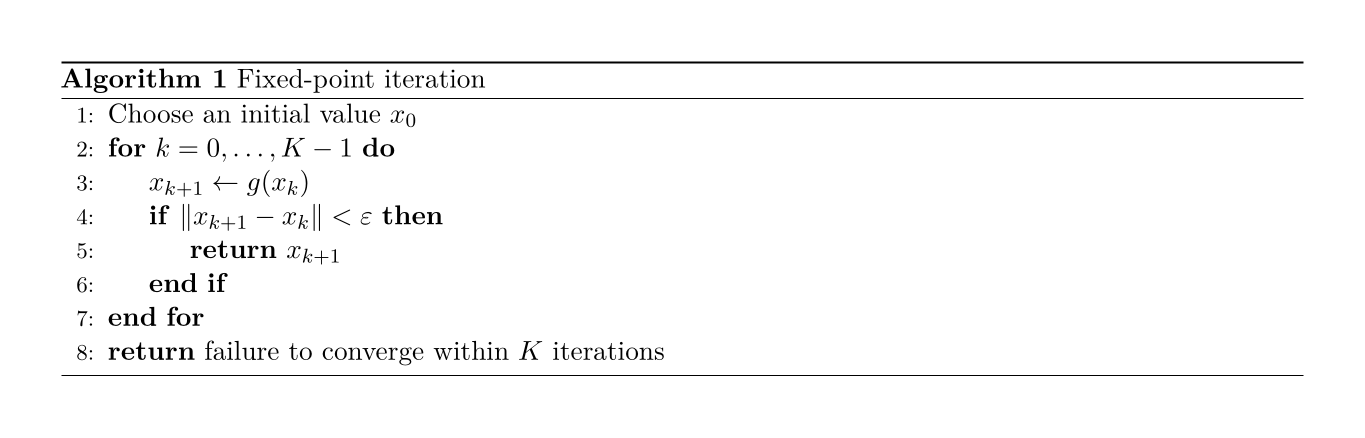

Algorithms and pseudocode

OR papers often include decomposition, heuristics, DP, or metaheuristics. Keep algorithms precise and easy to cross-reference.

Use structured pseudocode with line numbers

With algpseudocode:

\begin{algorithm}[t]
\caption{Benders decomposition (high-level)}
\label{alg:benders}
\begin{algorithmic}[1]
\State Initialize master problem with no Benders cuts.
\Repeat
  \State Solve master; obtain $(\hat{y}, \hat{\theta})$.
  \State Solve subproblem at $\hat{y}$.
  \If{subproblem infeasible}
    \State Add feasibility cut.
  \Else
    \State Add optimality cut and update incumbent.
  \EndIf
\Until{no violated cuts remain}
\end{algorithmic}
\end{algorithm}

Refer to Algorithm~\ref{alg:benders} (or \cref{alg:benders}).

Algorithm typography rules

  • Algorithm captions should describe the method, not “Algorithm 1”.
  • Use consistent naming: “Procedure”, “Heuristic”, “Framework”, “Algorithm”.
  • Define termination criteria precisely (gap, iterations, time limit).

Complexity statements

Write complexity as math:

  • $\mathcal{O}(n\log n)$, not “O(n log n)” in text mode.

Define an operator macro if you use it often:

\newcommand{\bigO}{\mathcal{O}}

Theorems, propositions, lemmas, and proofs

OR papers frequently mix theory and computation. Theorem environments should look professional and be easy to reference.

Use amsthm styles intentionally

  • plain (italic body): theorem/lemma/proposition/corollary.
  • definition (upright body): definitions/assumptions.
  • remark (upright body): remarks.

Label theorems and assumptions

\begin{assumption}\label{ass:convex}
The feasible region is nonempty and compact.
\end{assumption}

Then: Under \cref{ass:convex}, …

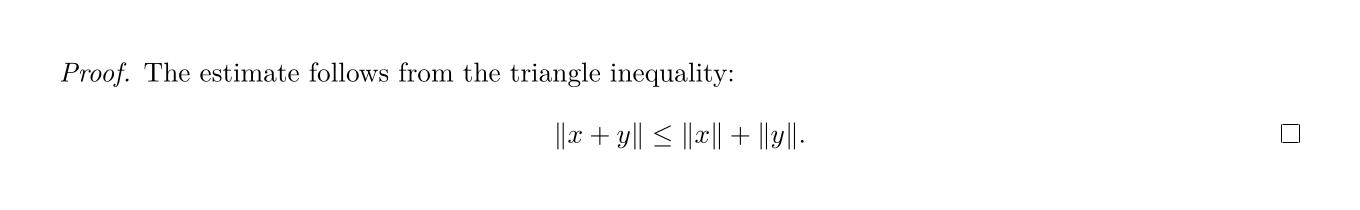

Proof hygiene

  • Use \begin{proof}...\end{proof}.
  • If you end with a displayed equation, use \qedhere to position the □ nicely.
\begin{proof}
...
\begin{equation}
  x^\star \in \argmin_{x\in X} f(x). \qedhere
\end{equation}
\end{proof}

Use clear structure:

  1. State what you prove.
  2. Give the main inequality or argument.
  3. Close cleanly.

Math typography and font styles in OR

This section is about meaning encoded in fonts—a major readability factor in OR.

While there’s variation by subfield, a robust and readable default is:

  • Scalars: italic ($x$, $c_{ij}$)
  • Vectors: bold italic ($\bm{x}$, $\bm{c}$)
  • Matrices: bold italic ($\bm{A}$) or bold uppercase (field preference)
  • Sets: calligraphic ($\mathcal{I}$)
  • Functions/operators: upright (\min, \argmin, \log)
  • Constants: upright when they are true constants ($\mathrm{e}$, $\mathrm{i}$)

Implementing bold vectors/matrices

Use bm and define macros:

\newcommand{\vect}[1]{\bm{#1}}
\newcommand{\mat}[1]{\bm{#1}}

Why bm?

  • It correctly bolds Greek and symbols (\vect{\lambda}), where \mathbf fails.

Avoiding typography ambiguity in OR notation

OR manuscripts often overload symbols:

  • $c$ as cost and speed of light (rare, but the idea stands)
  • $T$ as time horizon and transpose
  • $\lambda$ as Lagrange multiplier and arrival rate (queueing)

Best practice:

  • Use \top for transpose (as a superscript), e.g., $\bm{c}^\top \bm{x}$.
  • If your subfield uses $\lambda$ heavily (queueing + duality), consider different Greek letters or explicit subscripts.

Calligraphic, blackboard, fraktur

Use font families as semantic classes, not decoration:

  • $\mathcal{I}$ sets / index families
  • $\mathbb{R}$ number systems
  • $\mathfrak{g}$ (rare in OR; more common in algebra)

Probability, expectations, and stochastic models

Many OR papers involve stochastic programming, MDPs, queueing, or robust optimization. Notation consistency is critical.

Expectation and probability operators

Define:

\newcommand{\Prob}{\mathbb{P}}
\newcommand{\E}{\mathbb{E}}

Conditional expectation should use \mid (proper spacing), not |:

\E[X \mid Y=y]
\Prob(A \mid B)

If you use conditioning often, define a \given macro:

\newcommand{\given}{\,\middle|\,}

Then: \E[X \given Y].

Random variables vs realizations

Pick one convention and state it:

  • Convention A (common): random variables uppercase ($D$), realizations lowercase ($d$).
  • Convention B: random variables decorated ($\tilde{D}$), decisions plain.

Avoid mixing conventions across sections.

Computational experiments reporting

This is OR-specific and often decisive in reviews.

Report what reviewers will look for

  • Instance generation / source (public set, synthetic process, etc.)
  • Number of instances, size parameters
  • Hardware (CPU model, RAM), OS
  • Solver and version (e.g., Gurobi, CPLEX), parameter settings
  • Time limits, optimality gaps, random seeds
  • Baselines and fairness (same machine, same termination rules)

Tables: align and compress without losing truth

Use booktabs + siunitx alignment.

Include:

  • mean ± std (if randomized)
  • median + IQR (often robust)
  • best-known objective, gap, time

Avoid “too many decimals”:

  • pick meaningful precision (e.g., time to 0.01s may be nonsense if system noise is larger).

Figures and tables

(Short version: same best practices as general scientific LaTeX, with OR emphasis on clarity and comparability.)

Figures in OR papers

  • Prefer vector PDF for plots.
  • Label axes with units (use siunitx in plot labels if possible).
  • If you compare methods, keep line styles distinct and legends readable.

Tables in OR papers

  • Avoid vertical lines; use whitespace and booktabs.
  • Align numbers by decimal point (S columns).
  • Always specify what “gap” means (relative? absolute? vs best-known?).

OR manuscripts benefit disproportionately from good cross-referencing.

  • Use \cref{...} for:

- Models \cref{prob:ufl} - Constraints \cref{prob:ufl:open} - Algorithms \cref{alg:benders} - Theorems \cref{thm:convergence} - Assumptions \cref{ass:convex}

Nonbreaking spaces still matter if you ever use manual references:

  • Algorithm~\ref{alg:...}, Theorem~\ref{thm:...}

Bibliography and citations

Style choice in OR

  • Many OR journals use author–year citations; some use numeric.
  • The safest draft choice is biblatex with style=authoryear.
  • Switch to venue-required style at submission time.

Capitalization in titles

Protect acronyms and proper nouns in .bib:

title = {A {Benders} decomposition approach for {MILP} models},

Citation commands

With biblatex:

  • \parencite{key} → (Author, Year)
  • \textcite{key} → Author (Year)

Use \textcite when the author name is grammatically part of the sentence.

English + typographic micro-rules for OR writing

These are the small things that make OR manuscripts feel “review-ready.”

Hyphenation in OR terms

Use hyphens consistently:

  • “mixed-integer linear program” (MILP)
  • “two-stage stochastic program”
  • “polynomial-time algorithm”
  • “cut-generating function” (if used adjectivally)

Dashes (hyphen/en dash/em dash)

  • Hyphen -: compound modifiers (“branch-and-cut”).
  • En dash --: ranges (“10--20”) and connections (“Dantzig--Wolfe”).
  • Em dash ---: parenthetical breaks—use sparingly in formal OR writing.

Common OR abbreviations and capitalization

  • NP-hard (hyphenated, “NP” uppercase)
  • MIP/MILP/LP/QP/SDP (uppercase; define once)
  • KKT (uppercase)
  • “Benders decomposition,” “Dantzig–Wolfe decomposition” (proper nouns)

“i.e.” and “e.g.”

  • “e.g.,” and “i.e.,” often take a comma in US style: “e.g., we consider…”.
  • Avoid stuffing long lists after “e.g.,”; use “for example” if the sentence gets heavy.

Optimization language: avoid ambiguity

Be explicit about what is being optimized and over what domain.

Prefer:

  • “We solve the MILP in \cref{prob:ufl}.”
  • “We minimize expected cost over first-stage decisions.”

Avoid:

  • “We optimize the model.” (What objective? what constraints? what algorithm?)

Equations are sentences

This is especially important in model-heavy OR writing.

  • Put commas and periods in displayed math when grammatically needed.
  • Don’t leave the reader guessing whether constraints are complete.

OR-specific checklist

Model and notation

Theory

Algorithms

Computation

Appendix: starter macros.tex for OR

Paste into macros.tex and tailor.

% macros.tex — Operations Research notation

% --- Number systems ---
\newcommand{\Reals}{\mathbb{R}}
\newcommand{\Integers}{\mathbb{Z}}
\newcommand{\Realspos}{\Reals_{+}}
\newcommand{\Integerspos}{\Integers_{+}}

% --- Sets (use calligraphic for index sets) ---
\newcommand{\setI}{\mathcal{I}}
\newcommand{\setJ}{\mathcal{J}}
\newcommand{\setK}{\mathcal{K}}
\newcommand{\setA}{\mathcal{A}}
\newcommand{\setN}{\mathcal{N}}
\newcommand{\setU}{\mathcal{U}}
\newcommand{\setO}{\Omega} % scenario set often denoted Omega

% --- Linear algebra objects ---
\newcommand{\vect}[1]{\bm{#1}} % bold italic vector
\newcommand{\mat}[1]{\bm{#1}}  % bold italic matrix

% --- Transpose and inner products ---
\newcommand{\T}{^{\mathsf{T}}}
\newcommand{\ip}[2]{\left\langle #1, #2 \right\rangle}

% --- Optimization operators ---
\DeclareMathOperator*{\argmin}{arg\,min}
\DeclareMathOperator*{\argmax}{arg\,max}

% Subject-to (upright text) and "min/max" in model blocks
\newcommand{\st}{\text{s.t.}}

% --- Probability and expectation ---
\newcommand{\Prob}{\mathbb{P}}
\newcommand{\E}{\mathbb{E}}
\newcommand{\Var}{\operatorname{Var}}

% Conditioning bar with good spacing
\newcommand{\given}{\,\middle|\,}

% --- Differential (if needed) ---
\newcommand{\diff}{\mathop{}\!\mathrm{d}}

% --- Complexity ---
\newcommand{\bigO}{\mathcal{O}}

% --- Norms / abs / floor / ceil ---
\DeclarePairedDelimiter{\abs}{\lvert}{\rvert}
\DeclarePairedDelimiter{\norm}{\lVert}{\rVert}
\DeclarePairedDelimiter{\ceil}{\lceil}{\rceil}
\DeclarePairedDelimiter{\floor}{\lfloor}{\rfloor}

% Usage:
% \abs{x}, \abs*{x} for auto sizing
% \norm{x}, \ceil*{x}, etc.

% --- Indicator function (choose one approach) ---
% Option 1: bold 1 (portable)
\newcommand{\ind}{\mathbf{1}}
% Then write: \ind\{A\} or define a wrapper:
\newcommand{\Ind}[1]{\ind\{#1\}}

% If you prefer a blackboard 1, consider:
% \usepackage{bbm}
% \newcommand{\ind}{\mathbbm{1}}

% --- Common constants (upright) ---
\newcommand{\e}{\mathrm{e}}
\newcommand{\ii}{\mathrm{i}}

Practical next steps

To align with a specific OR venue:

  • Replace \documentclass{article} with the venue class.
  • Adjust bibliography style to the required one (some venues require BibTeX styles).
  • Keep your notation macros stable; this is what preserves clarity across formats.
All posts Back to main site
